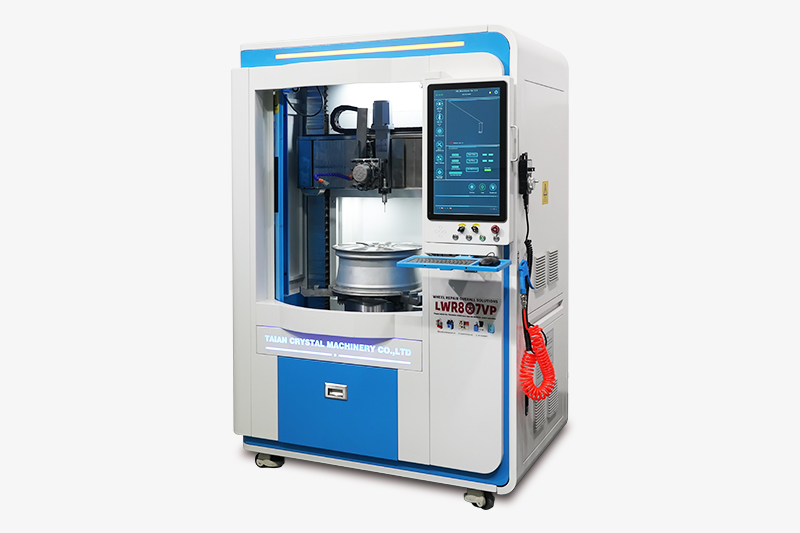

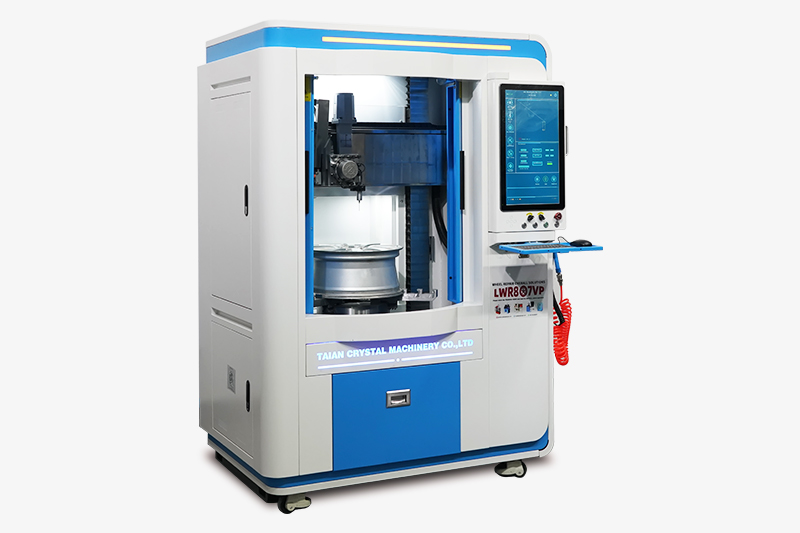

Vertical Wheel Repair Machine LWR807VP

Email Us: jack@crystalwheelrepair.com

Advantages

1.Small size, big capabilitie: he rear and left side can be against the corner, set with adjustable casters, easy to move and the space occupied is only 1.35m², which makes it more applicable and flexible. It can cut wheels with the tire mounted, max size is 30’’..

2.One-click switching auto turret: 3 cutters and 1 probe can be clamped. 1.5 seconds to complete tools’ exchange, accuracy up to 0.005mm, Its experimental use time more than 100000, saves time and effort, fast and high precision. Compared with manual tool holders, the positioning accuracy is thousands of times higher.

3.Cast iron gantry structure/dual Z-axis drive: The machine delivers exceptional stability even during high-speed operation, ensuring 100% reliable cutting performance.Compared with a cantilever structure, this design provides greater rigidity, higher stability, improved reliability, and a longer service life, making it ideal for demanding wheel repair applications.

4.High-precision ruby detection: It accurately restores the original wheel profile. The detection and cutting speed are adjustable. Auto repetitive cutting, depth and times customizable.

5.22’’ Multi-touch industrial PC controller: Featuring a larger vertical touchscreen, the machine is built with Crystal’s latest control system, offering more advanced functions and greater flexibility. It is also equipped with a mouse and keyboard, providing clearer visibility and making operation easier and more efficient.

6.Complete machine delivered, plug and start to use, easy to learn, simple to operate. Daily maintenance only requires adding lubricating oil.

Specifications

Control system: CRYSTAL V3.5

Max. wheel cutting size/depth: 30’’/410mm

X/Z axis position accuracy: 0.02mm

Chuck & claw: 13" chuck with 3 extended claw

Range of spindle speed: 10-1500rpm

Machine total power: 8.3KW

Power supply: 3phase380V50Hz(1P220Vavailable)

Machine/Packing size(L*W*H): 1350*1000*1920/1550*1220*2170mm

Net/Gross weight: 870/960Kg
