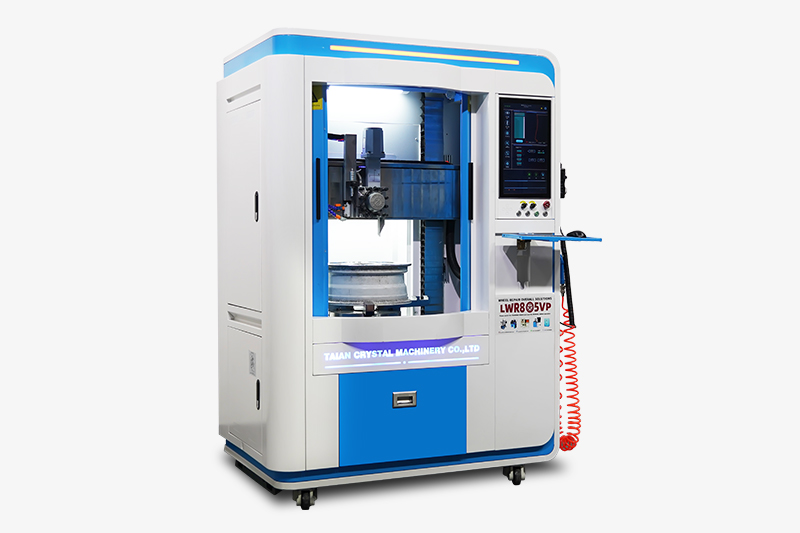

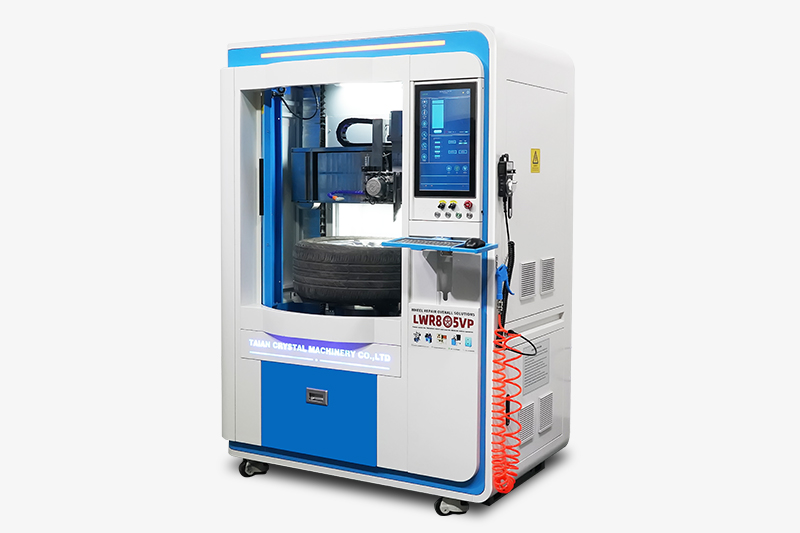

1.Small size, big capabilitie: the rear and left side can be against the corner, set with adjustable casters, easy to move and the space occupied is only 1.35m², which makes it more applicable and flexible. Can cut with the tire on the wheel, max size is 30’’.

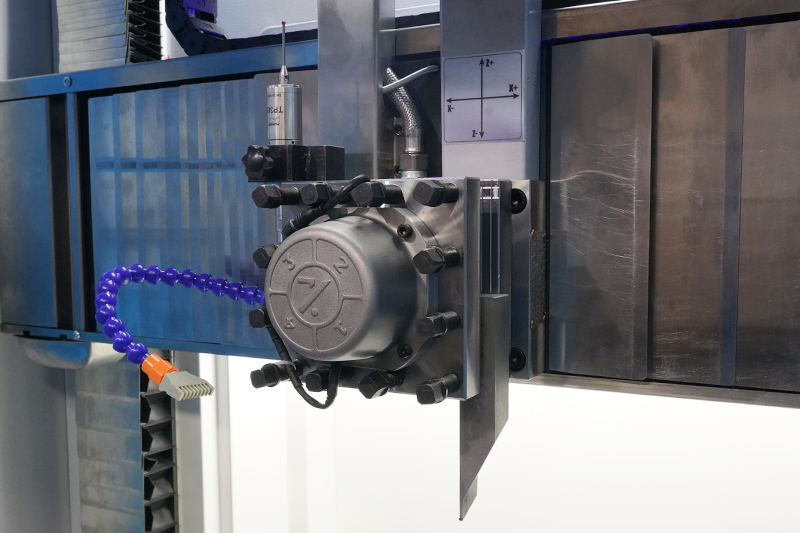

2.One-click switching auto turret: 3 cutters and 1 probe can be clamped. 1.5 seconds to complete tools’ exchange, accuracy up to 0.005mm, Its experimental use time more than 100000, saves time and effort, fast and high precision. Compared with manual tool holders, the positioning accuracy is thousands of times higher.
3.Cast iron gantry structure: no tremble even running under high speed, the cutting effect can be 100% guaranteed. Compared with the cantilever structure, it has stronger stability, rigidity, reliability and loger service-life.
4.High-precision ruby detection: perfectly restore the original curve. The detection and cutting speed are adjustable. Auto repetitive cutting, depth and times customizable.
5.Multi-touch industrial PC controller: big size vertical screen, build in Crystal Newest system with more functions. Also equipped with mouse and keyboard, convenient to use
6.Complete machine delivered, plug and start, easy to learn, simple to operate. Daily maintenance only requires adding lubricating oil.
Control system: CRYSTAL V3.5
Max. wheel cutting size/depth: 30’’/410mm
X/Z axis position accuracy: 0.001mm
Chuck & claw: 13" chuck with 3 extended claw
Range of spindle speed: 10-1500rpm
Machine total power: 6.35KW
Power supply: 3phase380V50Hz(1P220Vavailable)
Machine/Packing size(L*W*H): 1350*1000*1920/1550*1220*2170mm
Net/Gross weight: 850/940Kg
